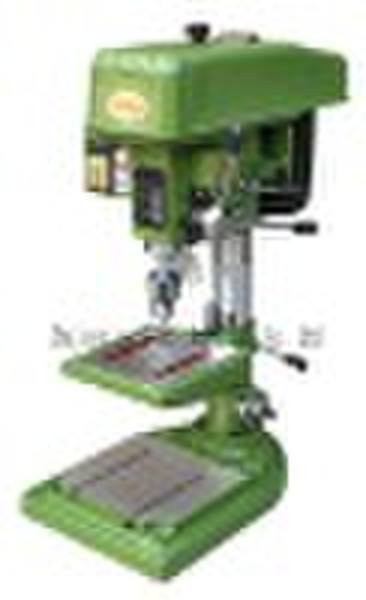

bench drilling machine ZS5116B/bench driller/drill

Characters: *suitable for drilling,reaming and milling with low noise *have variable speed and used for all kinds of hard and sofe material. *main stock can move up and down and also rotate around the column,which enlarge its field. *can work with serval spindles for different purposes. Modle:ZS5116B max drilling capacity:16mmthe diameter of the attack:12/10spindle travel:100mmspindle taper:MT2spindle speeds:motor speeds(1400r/min): 480r/min,800r/min,1400r/min,2440r/min,4100r/min motor speeds(910r/min):320r/min,530r/min,910r/min,1600r/min,2700r/mindistance spindle:193mmdimension of worktable surface:200mm*230mmdimension of base:280mm*260mmthe work table rises and falls traveling schedule:220mmdistance of main axle nose to work table floor:95-315mmdistance of main axle nose to foundation floor:336-556mmrevolving angle of work table:±45°motor:750Wship measurement:700*370*1037mmweight(kg):97kg
